If your vehicle is experiencing an underboost issue, lack of power, or a P0299 fault code, it does not always mean the turbocharger itself has failed.

At Turbo4x4 Australia, we regularly see vehicles diagnosed with “faulty turbo” when the real issue is caused by leaks, sensors, actuator problems, or installation-related issues.

This guide explains the most common causes of underboost and what should be checked before replacing a turbocharger.

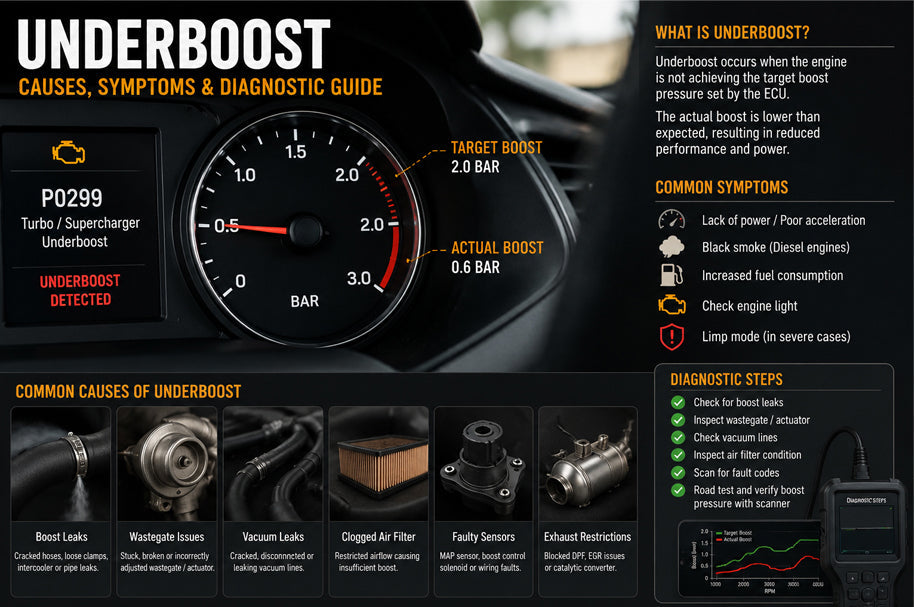

Common Symptoms of Underboost

Vehicles with underboost problems may experience:

• Lack of power
• Slow acceleration
• Turbo lag
• Black smoke from exhaust
• Limp mode
• Check engine light
• P0299 underboost fault code
• Poor towing performance

In diesel vehicles, underboost is especially noticeable during uphill driving or heavy load conditions.

What Causes Underboost?

1. Boost Leaks

One of the most common causes of underboost is a leak in the intake or intercooler system.

Check for:

• Split intercooler hoses
• Loose clamps
• Cracked boost pipes
• Damaged intercoolers
• Oil residue around hose connections

Even a small leak can cause major boost pressure loss.

2. Turbo Actuator Problems

Modern turbochargers use either vacuum or electronic actuators to control boost pressure.

Problems can include:

• Faulty actuator
• Incorrect calibration
• Wiring faults
• Vacuum leaks
• Sticking actuator arm

Electronic actuators can automatically adjust their resting position, so the arm position may appear different compared to the original turbo when not installed.

3. VNT / VGT Vane Mechanism Seized

Variable vane turbochargers use adjustable internal vanes to control exhaust flow.

Over time, carbon build-up or excessive heat can cause the vane mechanism to seize.

Symptoms may include:

• No movement in vane arm
• Overboost or underboost faults
• Turbo lag
• Loss of power

If the actuator is disconnected and the vane lever does not move freely by hand, the internal vane system may be seized.

4. Vacuum System Faults

Many turbo systems rely on vacuum pressure to control boost.

Common issues include:

• Cracked vacuum lines
• Disconnected hoses
• Faulty boost control solenoid
• Weak vacuum supply

A simple vacuum leak can easily trigger underboost faults.

5. Sensor Problems

Faulty sensors can provide incorrect boost readings to the ECU.

Common sensors include:

• MAP sensor
• MAF sensor
• Boost pressure sensor

Dirty or faulty sensors may cause poor turbo performance even when the turbo itself is operating correctly.

6. Blocked Air Filter

A heavily restricted air filter can reduce airflow enough to cause underboost conditions.

Always inspect the air filter during diagnosis.
